LMO Lithium Manganese Oxide
Poly crystal
LMO Lithium Manganese Oxide Battery grade
Formula: LiMn₂O₄
CAS: 12057-17-9
Physical Properties
Density: ~4.1 g/cm³ (at 25°C); cathode density up to 4.28 g/cm³

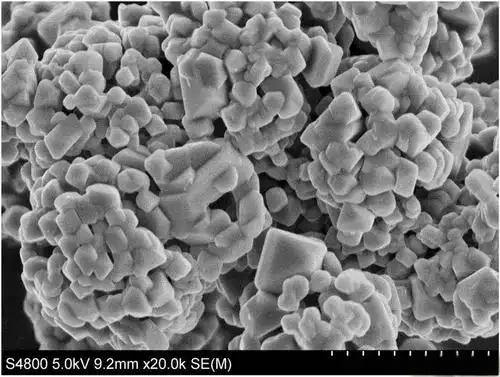

Crystal Structure: Cubic spinel (space group Fd3m), with 3D lithium-ion diffusion channels

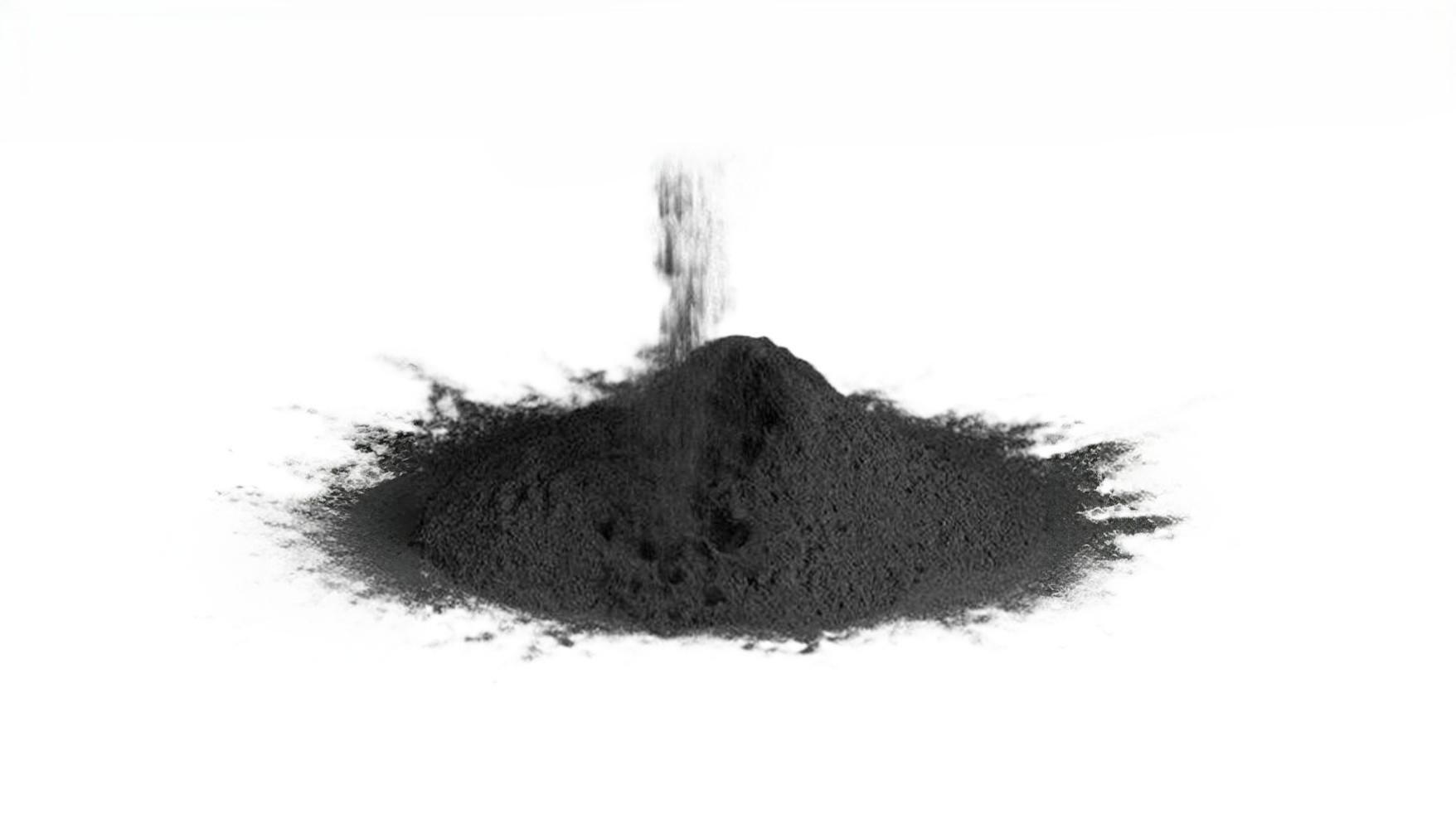

Appearance: Black or brown-black powder
Chemical Properties
Li/Mn Molar Ratio: 0.45–0.5, critical for structural stability and capacity
Thermal Stability: Prone to phase transformation and Mn dissolution at elevated temperatures
Synthesis: Typically prepared via solid-state reaction using MnO₂ and lithium salts (e.g., Li₂CO₃)
Electrochemical Performance
Voltage Range: 3.5–4.3 V (vs. Li/Li⁺)
Specific Capacity: Theoretical 148 mAh/g; practical ~110 mAh/g
Cycle Life: Degrades due to Mn dissolution and structural collapse, inferior to ternary cathode materials
Safety: Superior thermal stability compared to LiFePO₄
Rate Capability: Fast Li⁺ diffusion enabled by 3D channels supports high-rate performance
For more information or to check availability, please contact our business manager or leave your details.
We look forward to hearing from you!
25kg/drum;
Double-layer PE inner bag, outer plastic drum
Aluminum-plastic inner bag, outer plastic drum;
